Audio amplifier power amplifier board VIRE 2C030 V1.1

Price: $

100 in stock (Left!)

Min Order:

Key Features

  • Product Type: Class D Audio Amplifier Board

  • Model No.: VIRE-2C030 V1.1

  • Input Voltage: DC 12V – 24V

  • Channels: Dual Channel (Stereo)

  • Output Power: 2 × 30W

  • Output Impedance: 2Ω – 8Ω

  • Recommended Speaker: 8Ω, 30–50W

  • Chipset: High-performance TPA3118D2 Amplifier Chip

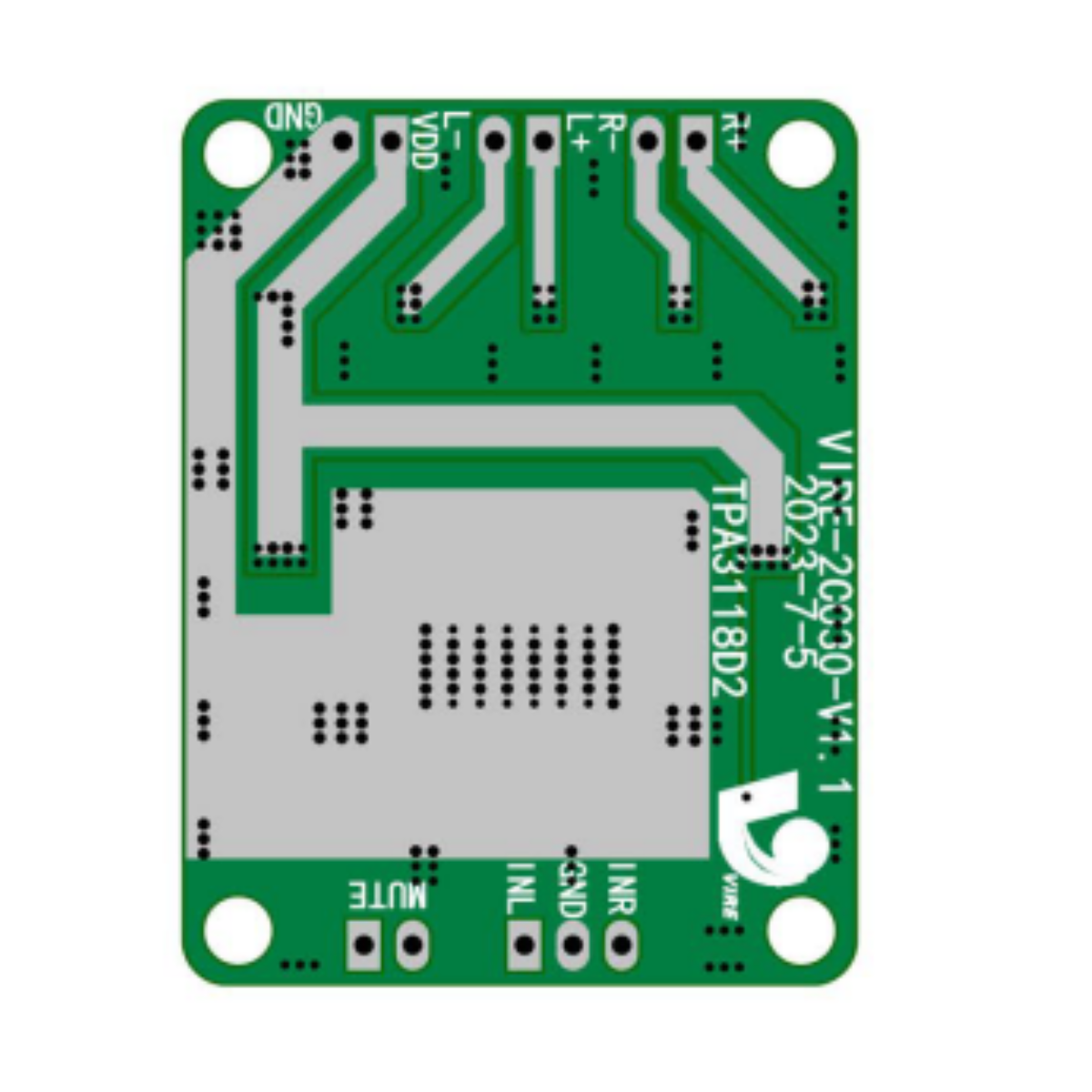

  • Sockets:

    • Power socket: 2P 2.54mm

    • Speaker socket: 2P 2.54mm

    • Mute socket: 2P 2.54mm

    • Audio input socket: 3P 2.54mm

  • Protection: Reverse polarity protection

  • Performance: Stable output, compact design

Description

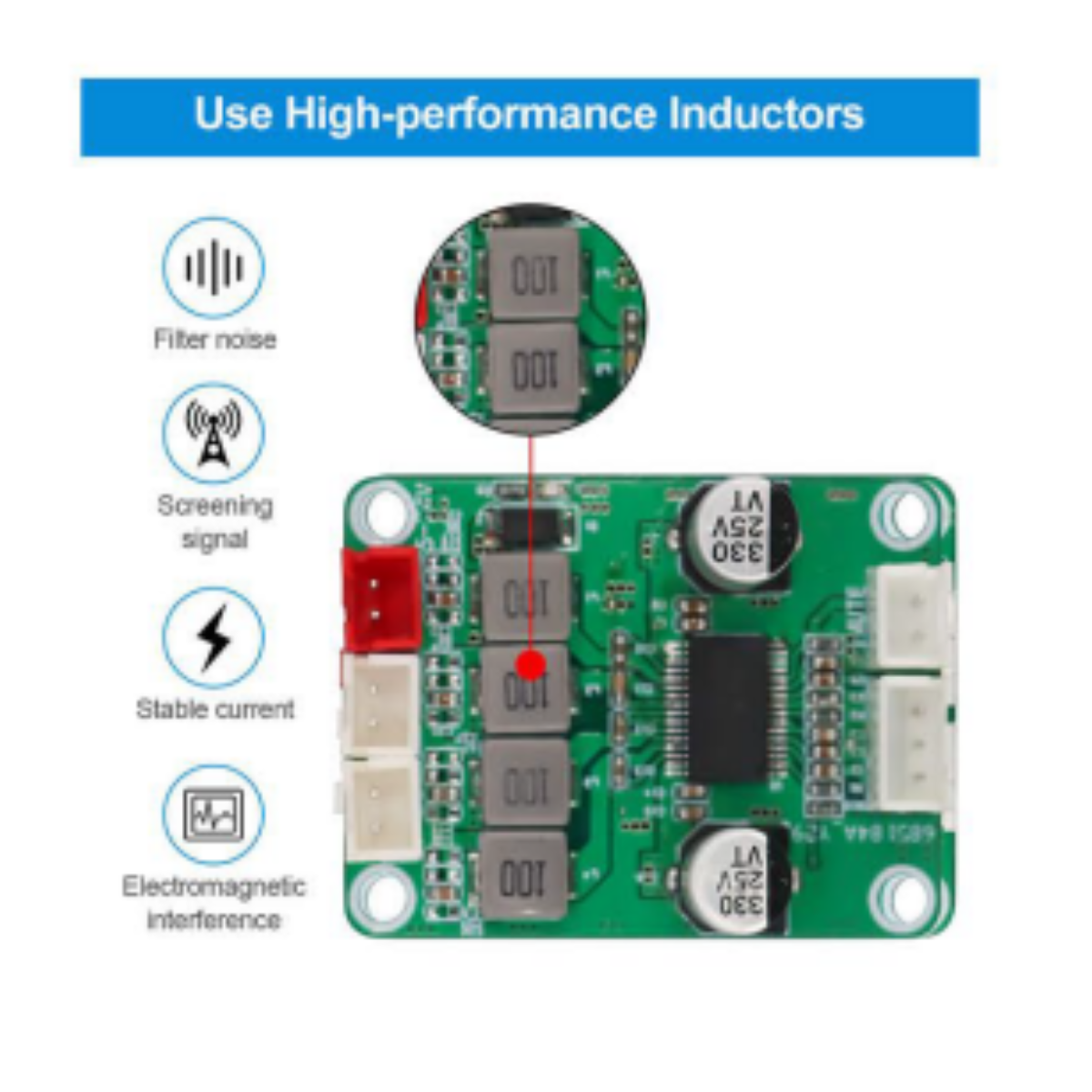

The VIRE-2C030 V1.1 Class D Audio Amplifier Board is a compact yet powerful solution for high-quality audio amplification. Designed around the TPA3118D2 chip, it delivers dual 30W output with excellent sound clarity and stability. Supporting a wide DC input voltage range of 12V to 24V, this module is versatile and can be powered by various sources.

With dual channels, the board is ideal for stereo speaker setups, handling 2Ω–8Ω impedance speakers, and performs best with 8Ω, 30–50W speakers. The amplifier is equipped with reverse polarity protection, ensuring safe and reliable operation even under accidental wiring errors.
