Bluetooth Power Amplifier/VTF-AC01

Price: $

100 in stock (Left!)

Min Order:

Key Features

  • Product: Bluetooth Power Amplifier (Model: VTF-AC01)

  • Amplifier Chip: Dual TPA3116

  • Bluetooth Chip: BP1048B2, Bluetooth 5.3 (range up to 50m / 164ft)

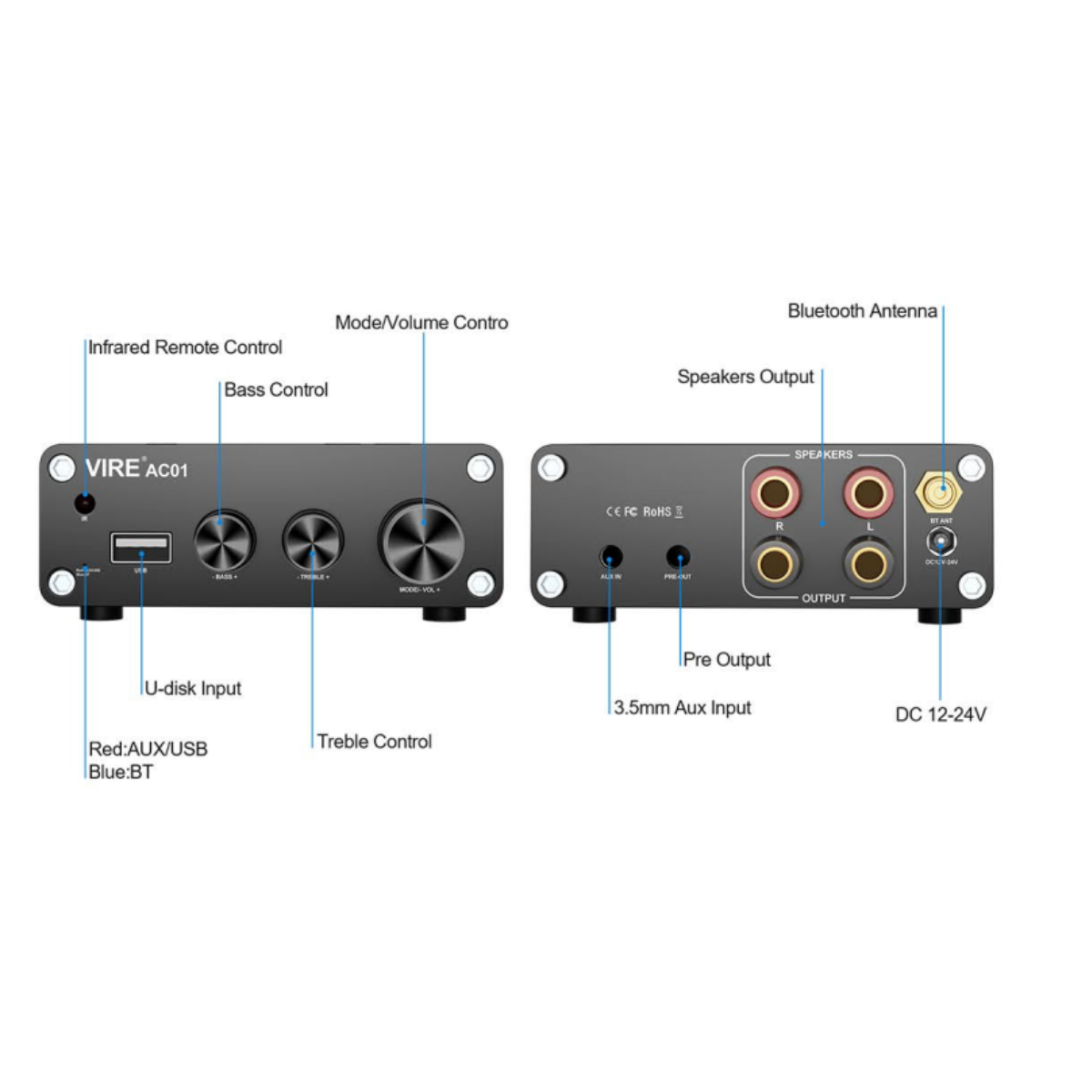

  • Input Interfaces: AUX, U-Disk, Bluetooth

  • Output Interfaces: Speaker Output + 3.5mm AUX Pre-out

  • Output Compatibility: Passive speakers, powered speakers, or external amplifiers

  • Max Power Output: 2 × 100W

  • Power Supply: 24V/5A or 24V/10A (supports DC 12V–24V range)

  • Frequency Response: 15Hz – 20KHz

  • Input Sensitivity: 500mV

  • Audio Format Support: MP3, WMA, APE, FLAC, WAV

  • Extra Features: Supports remote control operation

Description

The VTF-AC01 Bluetooth Power Amplifier is a versatile and powerful Class D amplifier designed for seamless wireless and wired audio connectivity. Powered by dual TPA3116 amplifier chips, it delivers a robust 2 × 100W output, providing clear and distortion-free sound suitable for both passive and powered speakers.

Equipped with the BP1048B2 Bluetooth 5.3 module, it ensures stable transmission up to 50 meters (164ft), allowing you to enjoy music without dropouts or interference. The amplifier supports multiple input options including AUX, Bluetooth, and U-Disk, making it flexible for different audio sources.
