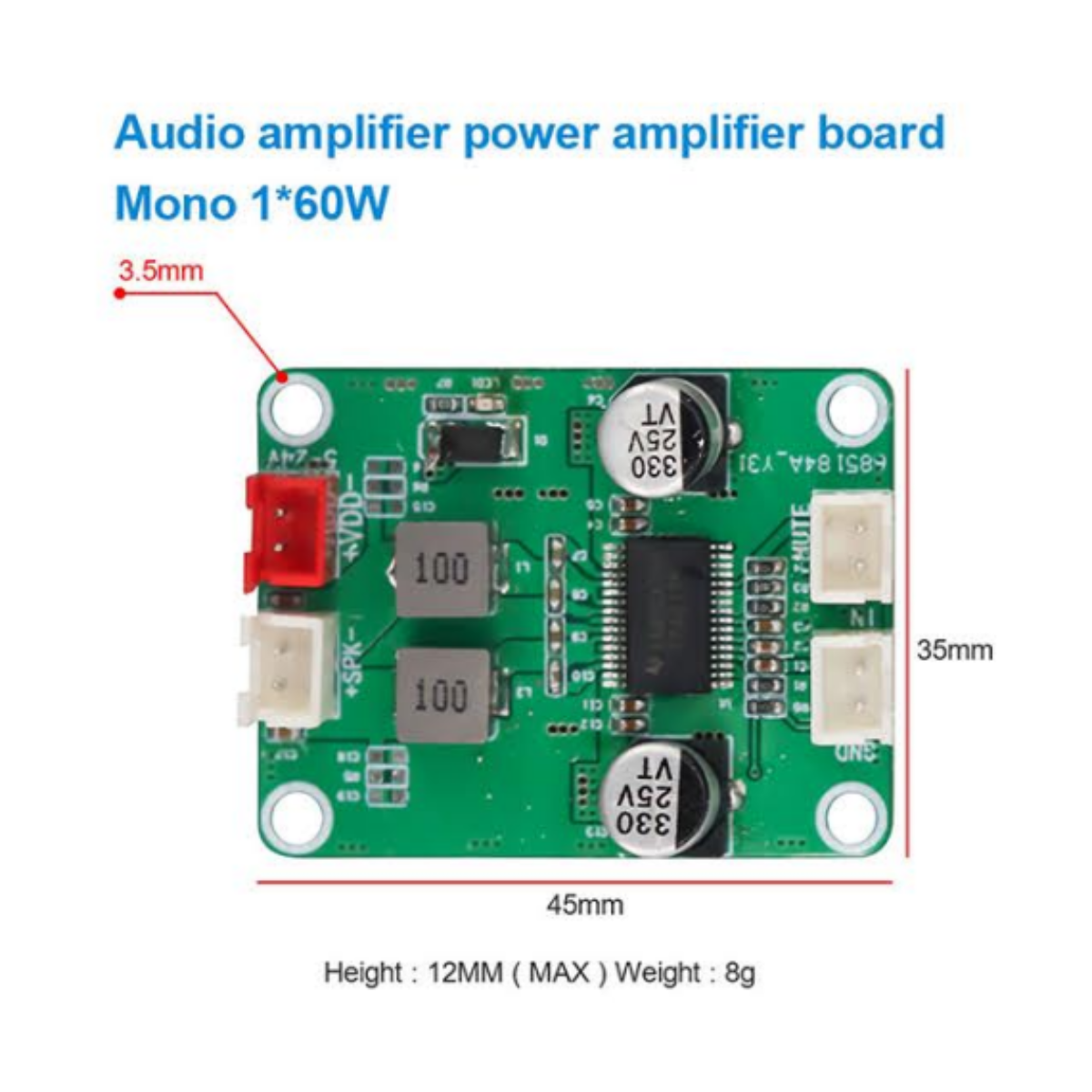

Audio amplifier power amplifier board/VIRE-1C060 V1.1

Price: $

100 in stock (Left!)

Min Order:

Key Features

  • Product: Class D Audio Amplifier

  • Model No.: VIRE-1C060 V1.1

  • Amplifier Chip: TPA3118D2 high-performance chip

  • Input Voltage: DC 12V–24V

  • Channel Configuration: Mono (single-channel)

  • Output Power: 1 × 60W

  • Output Impedance: 2Ω – 8Ω

  • Recommended Speaker: 4Ω / 30–80W

  • Sockets:

    • Power socket: 2P 2.54mm

    • Speaker socket: 2P 2.54mm

    • Mute socket: 2P 2.54mm

    • Audio input socket: 3P 2.54mm

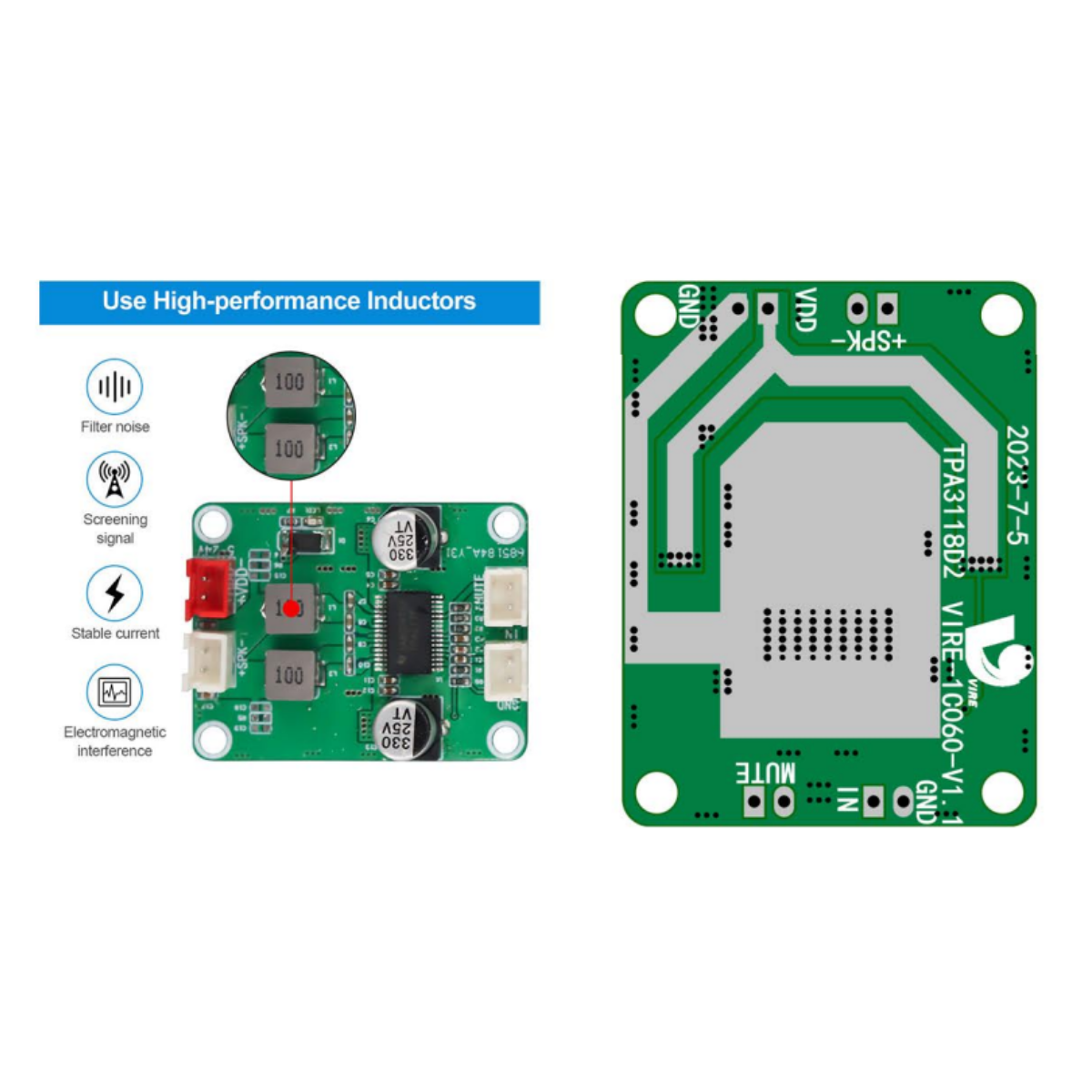

  • Design Features:

    • High-performance inductors for stable current

    • Noise filtering and signal screening

    • Reduced electromagnetic interference

  • Protection: Built-in reverse polarity power protection

Description

The VIRE-1C060 V1.1 Class D Audio Amplifier is a compact, efficient, and reliable mono amplifier designed to deliver 60W of clean output power. Powered by the TPA3118D2 amplifier chip, it ensures distortion-free sound and stable performance, making it an excellent choice for DIY audio projects, compact speaker systems, and subwoofer applications.

With an input voltage range of 12V–24V DC, this amplifier offers flexible power options while maintaining consistent output. The inclusion of high-performance inductors ensures stable current delivery, effective noise filtering, and reduced electromagnetic interference, resulting in superior audio quality.
