Audio amplifier power amplifier board/VIRE-2C100 V1

Price: $

100 in stock (Left!)

Min Order:

Key Features

  • Product: Class D Audio Amplifier

  • Model No.: VIRE-2C100 V1

  • Amplifier Chip: Dual TPA3116D2 high-performance chips

  • Input Voltage: DC 12V–24V

  • Channel Configuration: Dual Channel (Stereo)

  • Output Power: 2 × 100W

  • Output Impedance: 2Ω–8Ω

  • Recommended Speaker: 2Ω / 50–120W

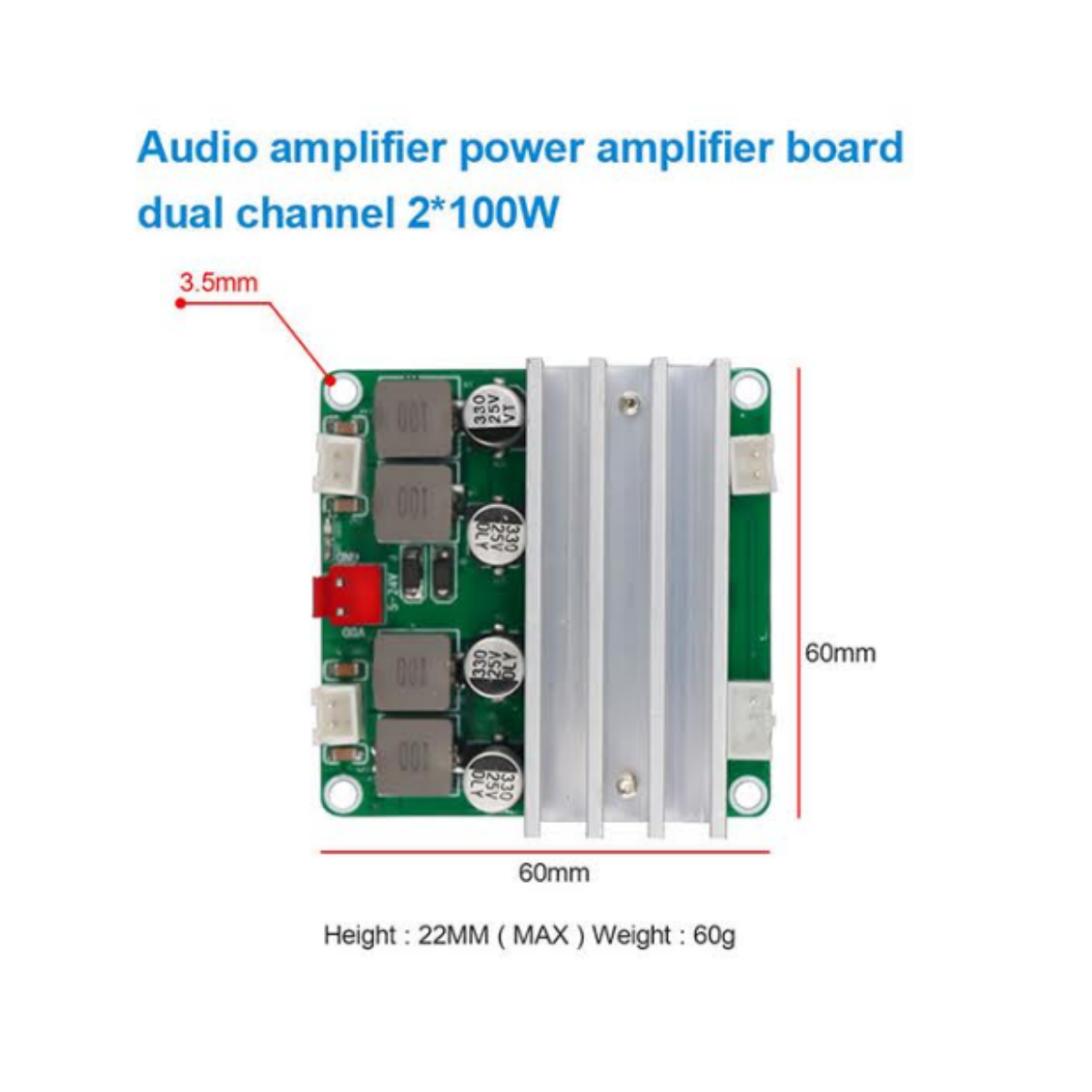

  • Size: 60mm × 60mm × 22mm (max), Weight: 60g

  • Sockets:

    • Power socket: 2P 3.96mm

    • Speaker socket: 2P 2.54mm

    • Mute socket: 2P 2.54mm

    • Audio input socket: 3P 2.54mm

  • Design Features:

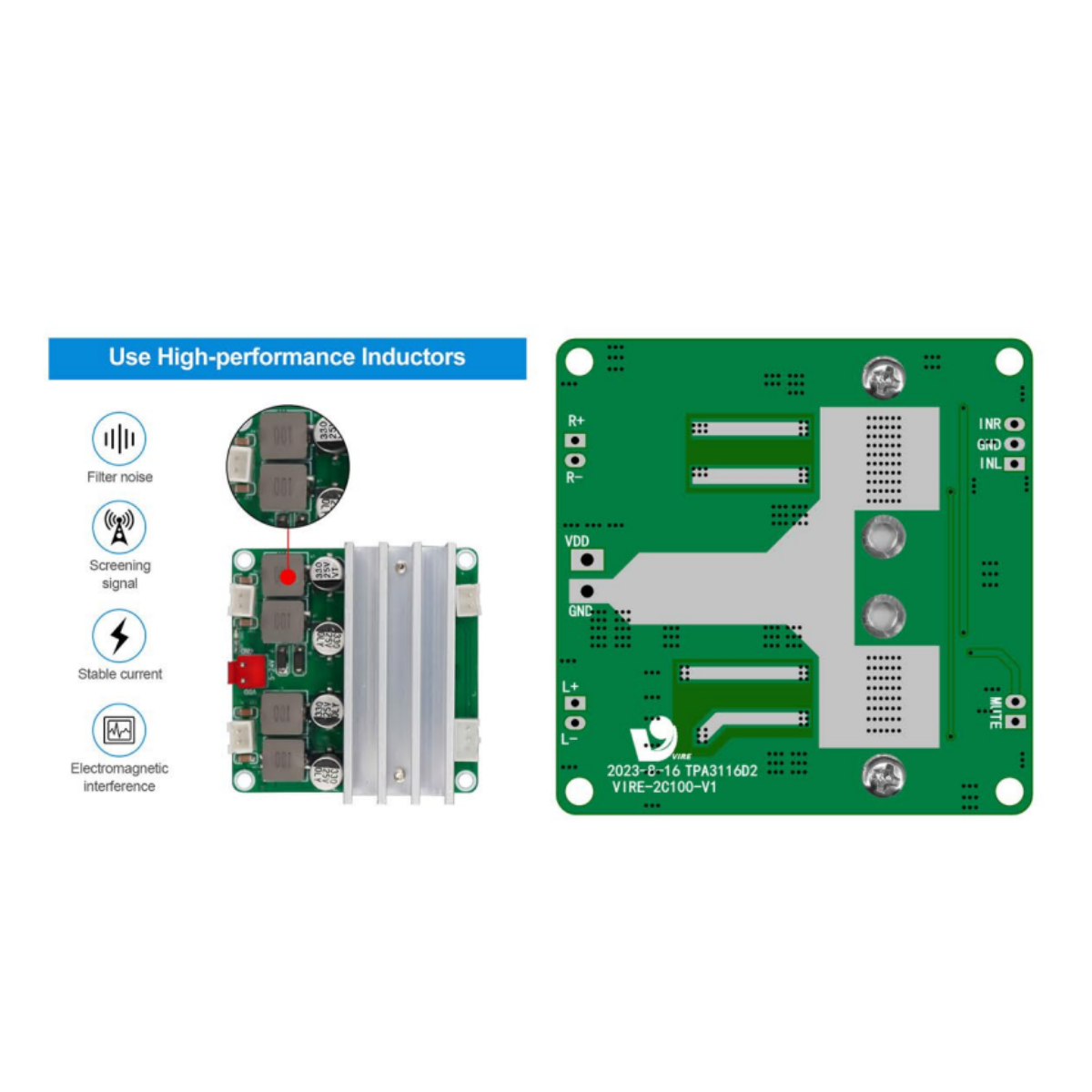

    • High-performance inductors for stable current

    • Noise filtering and signal screening

    • Low electromagnetic interference

  • Protection: Built-in reverse polarity power protection

Description

The VIRE-2C100 V1 Class D Audio Amplifier is a high-power stereo amplifier designed to deliver crisp, clear, and distortion-free sound. Built around dual TPA3116D2 amplifier chips, it provides a robust 2 × 100W output, making it suitable for driving powerful stereo speaker setups with ease.

Operating on a DC 12V–24V input, this amplifier is compact yet powerful, measuring just 60mm × 60mm × 22mm and weighing only 60g, making it ideal for integration into DIY audio projects, home sound systems, or portable audio solutions.
